WIFI Tuya App Meter

Location : Home  >  Products  >  WIFI Tuya App Meter
DM1306 WIFI Wall mount CO2 meter
Category : WIFI Tuya App Meter
Hits : 1323
Brief :
TUYA Wifi  app transfer to mobiles
  • Description
  • Inquiry

It is an advanced carbon dioxide detection instrument built in  high-quality Infrared ( NDIR ) sensor to allow real-time monitoring of carbon dioxide (CO2), temperature and humidity on its digital LED display. This instrument not only accurately measures the concentration of carbon dioxide in the air, but also showcases personal style through graffiti(Tuya). After connecting your phone,you can view real-time data anytime and anywhere, making you familiar with the air quality around you.

-Product Size:270*90*35MM
-Led Screen display

-CO2 Technology :  infrared ( NDIR)

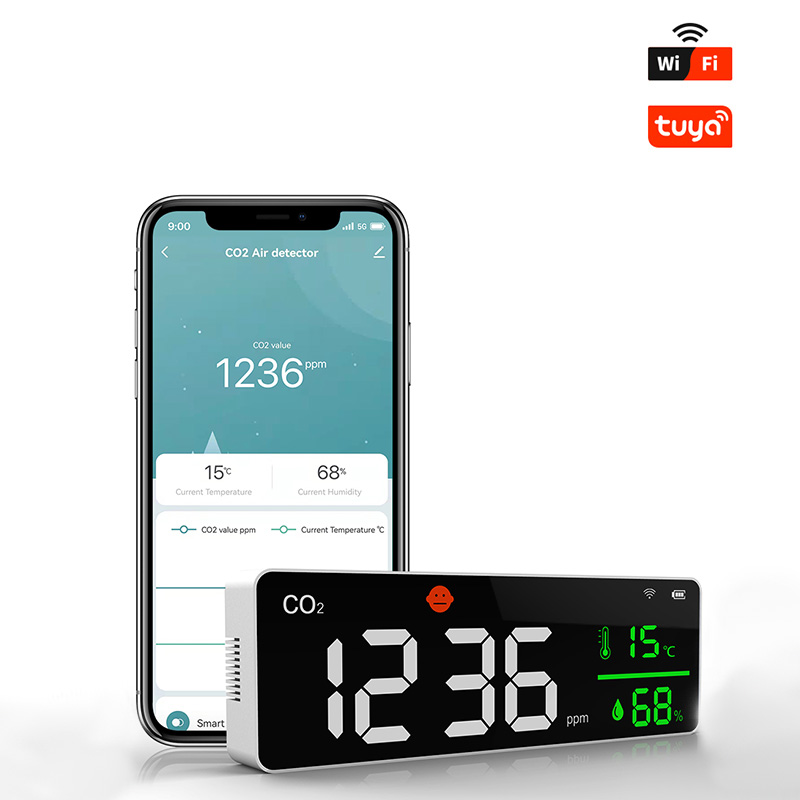

- WiFi  TUYA APP ,Transfer datas to mobiles phons ,support  Android and Apple phones  ,also support all kinds of languages

-Temperature unit Celcius

-CO2 Detection range:  400-5000 ppm
-CO2 Alarm  value : 1000ppm

--Support hand Setting  CO2 alarm threshold from 800ppm-2000ppm

-CO2 Alarm  on /off function(if users do not like alarm ,people can turn it off )
-Power supply:rechargeable  Li-battery 2000mah,includding USB Chargeing cable 3M

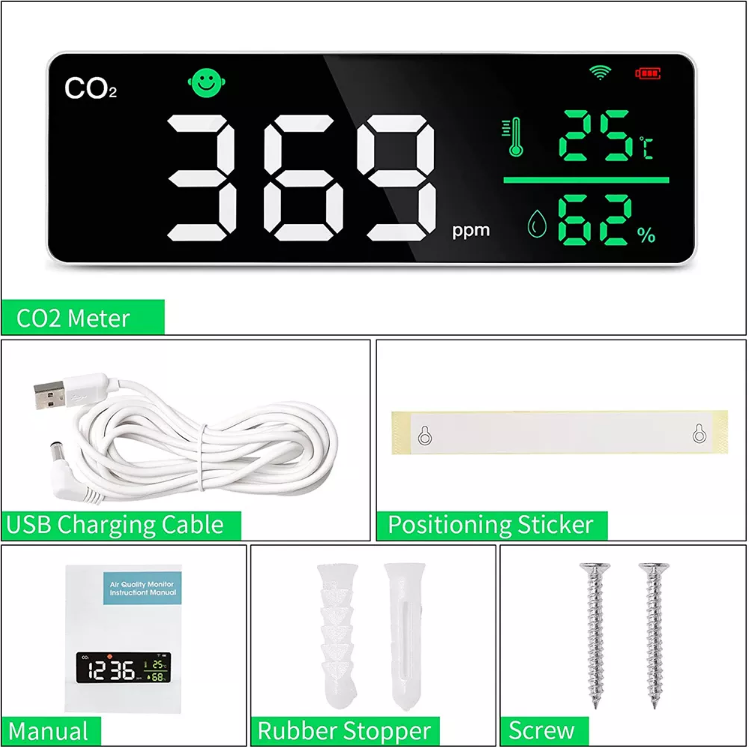

-Included:Main Unit+manual+charging cable

Advantage :
-WiFi  TUYA APP,datas transfer to mobile phones  to check CO2 values Wireless
-Integrated detection with CO2/Temperature/Humidity
-Auto calibration
-Exceeding Alarming with auto detection and auto measuring
-Alarm sound can be turned  off / on  by hand operation
-Screen brightness can be adjusted by hand
-Color Smile face , very realistic.
-Large screen ,Wall mount design

Package details:
Product N.W.:268g
Product G.W.:550g
Package Dimension:33*10*4.5cm
CTN Dimension:42.5*23.5*35.5cm
CTN Weight:11.8kg

Product name
Wall mount CO2 detector
LED Screen
CO2 Technology
infrared ( NDIR)
CO2 Alarm  value
CO2 Detection range
400-5000 ppm
Product Size
Power supply
rechargeable  Li-battery 2000mah


1 Q: What the test index are include for air quality monitor?
A : CO2: is for carbon dioxide,Infrared sensor(NDIR) Temperature and Humidity
Suitable for detecting CO2 concentration in industrial, agricultural and residential environments.
Control the ventilation system according to the monitored target value (CO2 concentration).
2 . Q: What is the standard range for CO2?
A: CO2 Test Range:
400~1000 ppm
Temperature Test Range: 0-50℃
Humidity Test Range 0-95%RH ;
 3.  Q: How to charge it?
mini  USB port  charging line which is included in the standard  accessories .
We also offer adapter(Like US adapter, Europe adapter...) if  add extra cost.
 4.  Q: How about OEM or custom?
A: Sure, Asprofessional and stable manufacture for CO2 merter factory, we can support many custom contents as below;
a  Printing logo on product .
b  Package, support custom pacakge(We can send neutral artwork to client to design package)
c  Manual, support custom maual for many language,like English, German, Japanese, Spanish, Dutch, Polish
d.  some custom sticker, like Amazon FBA upc label... To meet clients requirement.
e. Customized  software  is also possible  such as  change the CO2 standard value  , such as  shoot logo  display , such as  customized  language display  Etc .

 5.  Q: what's certificate include?
A: 1.CE and Rohs 2. MSDS and UN38.3

Common fields
1. Carbon dioxide monitoring of various industrial and agricultural plants, workshops, greenhouses, clean rooms,
2. Ventilation control and environmental quality monitoring required for homes, villas, office buildings, meeting rooms,
classrooms and other fields.
3. Ventilation control and environmental quality monitoring in public places such as hotels, exhibition halls, hospitals, shopping
malls, bars, restaurants, airports, train stations, entertainment halls, and theaters.
4.Units that produce and use carbon dioxide gas, etc.
Non-mandatory reference rating:
a) 350 ~ 400ppm-usual outdoor air level.
b) 400 ~ 1,000ppm-typical value in well-ventilated living space.
c) 1,000 to 2,000 ppm-an air level that is inadequate, sleepy, and sufficient to cause complaints
d) 2,000 ~ 5,000ppm-stagnant, old, sultry air level. It is headache and drowsiness, accompanied by
inattention, decreased concentration, rapid heartbeat and slight nausea.
e)> 5,000 ppm-Exposure to it may cause severe hypoxia, resulting in permanent brain damage, coma and even death.
